Tri-alanine water box (CGENFF TRIA)¶

A minimal periodic peptide + water system for PyCHARMM and JAX MM cross-checks — no Packmol, no protein toppar, no MLpot.

For peptide ML + solvent MM (partial MLpot), use mmml md-embedding build — it reuses this box builder and registers PhysNet on segment PEPT.

The peptide is a single CGENFF residue TRIA (documented as TRIALANINE: ACE–ALA×3–CT3) in mmml/data/charmm/top_trialanine_cgenff.rtf. Waters are TIP3 on a simple cubic grid inside a cubic cell.

Tri-alanine + TIP3 periodic box

Why a bundled residue?¶

CHARMM sequence names are at most four characters, so the sequence token is TRIA, not TRIALANINE. The supplemental RTF is appended after the main CGENFF topology so bonded parameters come from par_all36_cgenff.prm with CGENFF atom types (CG311, NG2S1, …).

Regenerate the RTF after topology changes (requires protein toppar only for export):

./scripts/mmml-charmm-mpirun.sh python scripts/export_trialanine_cgenff_rtf.py

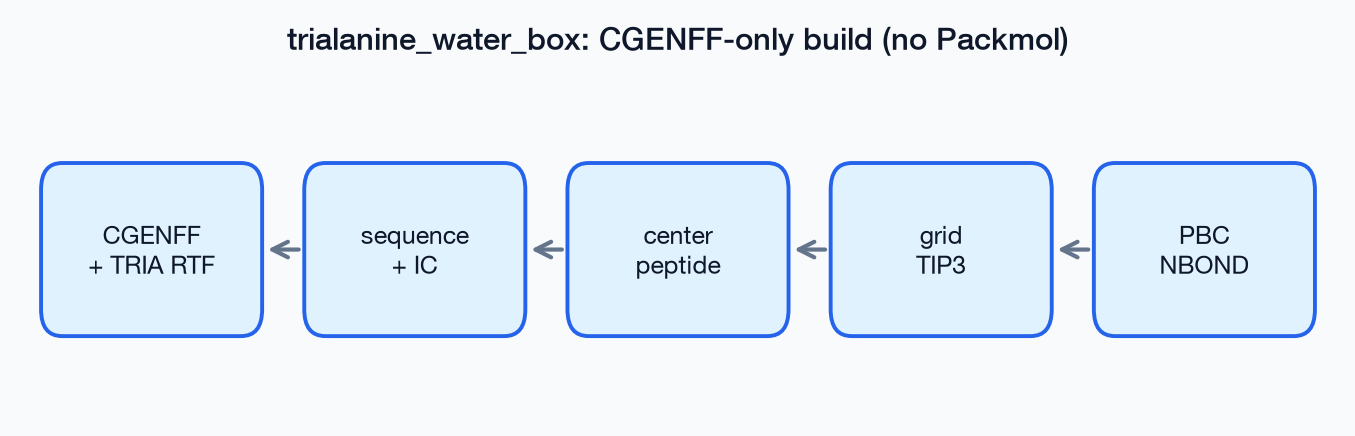

Build pipeline¶

flowchart LR
  A[Load CGENFF + TRIA RTF] --> B[read.sequence_string TRIA]
  B --> C[IC build / setupRes fallback]
  C --> D[Center peptide in box]
  D --> E[Grid-place TIP3 oxygens]
  E --> F[prepare_charmm_pbc + apply_pbc_nbonds]

Build pipeline schematic

Python entry point: mmml.interfaces.pycharmmInterface.trialanine_water_box.build_trialanine_water_box_in_charmm.

Default smoke parameters: 10 waters, 28 Å cube → 72 atoms (42 peptide + 30 water).

Smoke build (PyCHARMM)¶

./scripts/mmml-charmm-mpirun.sh python -c "
from pathlib import Path
from mmml.interfaces.pycharmmInterface.import_pycharmm import ensure_pycharmm_loaded
ensure_pycharmm_loaded()
from mmml.interfaces.pycharmmInterface.trialanine_water_box import build_trialanine_water_box_in_charmm
box = build_trialanine_water_box_in_charmm(n_waters=10, box_side_A=28.0, seed=11, workdir=Path('/tmp/tria_box'))
print(len(box.positions), box.psf_path)
"

Pass criteria: finite coordinates, PSF written, position std ≫ 0 (not collapsed IC).

JAX vs PyCHARMM total-MM cross-check¶

The functionality test test_trialanine_water_total_mm_matches_pycharmm compares mm_system_energy.py (MIC pair loop) to CHARMM ENER FORCE term components (bonded + VDW/IMNB + ELEC/IMEL). After the PSF INB/IBLO fix, total-MM Δ is typically ≲0.5 kcal/mol on the 72-atom smoke box (same order as DCM liquid parity). Do not compare against energy.get_total() under PBC — it can differ from the MIC-mapped component sum by several kcal/mol.

Run the parity report (metrics tables, JSON, and PNG plots)::

./scripts/mmml-charmm-mpirun.sh python scripts/diagnose_trialanine_nb_mismatch.py \\
  -o artifacts/trialanine_nb_parity

Outputs under artifacts/trialanine_nb_parity/:

File	Contents
`report.md`	Per-term CHARMM vs JAX table, pair-list stats, top offending pairs
`report.json`	Machine-readable metrics (CI / regression tracking)
`term_comparison.png`	Grouped bar: bonded, VDW, elec, total
`delta_breakdown.png`	JAX−CHARMM ΔVDW, ΔElec, ΔMM
`jax_nb_by_category.png`	JAX VDW+elec stacked by pep–pep / pep–water / water–water
`pair_distance_hist.png`	MIC distance histograms per category (ctonnb/ctofnb marked)
`top_pep_pep_vdw.png`	Largest peptide–peptide VDW pair contributors (JAX)
`category_vdw_comparison.png`	CHARMM segment BLOCK vs JAX VDW per category
`force_by_category.png`	Force RMS Δ (JAX masked pairs − CHARMM BLOCK) per category
`switch_derivative_audit.png`	JAX autodiff vs finite-difference dE/dr (fswitch/vfswitch)

CHARMM per-category terms use selective BLOCK (SEGID PEPT / SOLV). Pass --category-block to the diagnostic script. Under mpirun this can hang unless MMML_ALLOW_SELECTIVE_BONDED_BLOCK=1 — default run skips it and still reports JAX category breakdown + switch audit.

The functionality test uses energy_atol=0.7 kcal/mol on the 72-atom TRIA box (residual single-residue pep–pep VDW). Use the report above for per-term breakdown.

What we ruled out¶

Toggling vfswitch alone does not explain the gap (CHARMM VDW changes by ≲1 kcal on a 2× acetone dimer; tri-alanine is similar).
Bonded terms match (bond/angle/torsion/improper/CMAP/Urey–Bradley).

Main contributors (historical — pre INB/IBLO fix)¶

Term	PyCHARMM	JAX (MIC)	Notes
VDW	≈ −2 kcal/mol	≈ +12–32 kcal/mol	Fixed: wrong PSF exclusion parse inflated pep–pep VDW
Elec	≈ −12 kcal/mol	≈ −15 kcal/mol	Smaller gap when `MMML_LR_SOLVER=mic`

After the fix, typical deltas (seed 31 perturb): total MM ≈0.2–0.5 kcal/mol; bonded exact; VDW ≈0.3–0.6 kcal/mol on the all-in-one TRIA residue.

Root causes (implementation gaps)¶

Switching models — JAX mm_system_energy now implements CHARMM fswitch (cdie) and vfswitch (VDW) by default, matching apply_pbc_nbonds. Legacy pswitch (Brooks-style charmm_switch_factor) remains available via CharmmNbondSettings. PRM declares fshift for elec, but PyCHARMM runtime uses fswitch; residual energy gaps are dominated by pair-list / IMAGE differences, not the switch functional form. See CHARMM CGenFF JAX clone.
Pair list / IMAGE — JAX builds an O(N²) MIC list using PSF INB/IBLO exclusions (written after upinb at box build). Prior to 2026-07, parse_psf_ext mis-read the flat INB array as a packed per-atom list and ignored IBLO; that under-excluded peptide pairs and inflated JAX VDW. Small residual IMAGE differences may remain even when exclusions match.
Single RESI TRIA (42 atoms) — All peptide atoms share one residue; CHARMM and JAX agree on graph-distance ≥3 pairs, but CHARMM net intra-peptide VDW is much smaller than JAX.
Long-range backend — default lr_solver is MIC (truncated pair loop). For CHARMM comparison tests that require explicit MIC, pass lr_solver='mic' or MMML_LR_SOLVER=mic. Opt into jax-pme with lr_solver: jax_pme when you need k-space Coulomb.

Practical guidance¶

Treat the tri-alanine box as validated for CHARMM build + bonded JAX and as a MIC regression target for mm_system_energy (≲0.5 kcal/mol total on gpu09 with JAX_ENABLE_X64=1). For production MLpot paths, prefer mm_nonbond_mode=periodic_external or documented LR solvers (see long-range-solver-tutorial.md), not raw mm_system_energy MIC.

Tests¶

# Bonded + total-MM (total-MM may fail; see above)
./scripts/mmml-charmm-mpirun.sh python -m pytest \
  tests/functionality/charmm/test_trialanine_water_box_mm.py -m pycharmm -v

# Unit tests (no CHARMM)
uv run pytest tests/unit/test_mm_system_energy.py -q

See also: tests/functionality/charmm/README_trialanine_water_box.md.

Doc figures¶

Bundled CHARMM-built coordinates (mmml/data/charmm/trialanine-water-smoke.extxyz) feed MkDocs figures.

# Once per release (PyCHARMM + CHARMM_HOME):
export CHARMM_HOME=... CHARMM_LIB_DIR=... LD_LIBRARY_PATH=...
uv run python scripts/export_docs_structure_assets.py

# Render PNGs (CI-safe, no PyCHARMM):
uv run python scripts/generate_docs_figures.py

Writes docs/images/structures/trialanine-water-box.png, peptide zoom, and pipeline plot.
