Hybrid potential: cutoffs, regions, and long-range solvers

Visual guide to how MMML splits a periodic liquid or cluster into monomers, which physics layer acts on each interaction, and how long-range Coulomb backends extend beyond the switched pair loop.

Figures regenerate with:

uv run python scripts/plot_mlpot_settings.py

Related: MLpot switching reference, Long-range solver tutorial, md-system YAML cutoffs, Hybrid MM charges (fixed / latent / fixed+latent).

1. Monomers are the unit of switching

Every ML residue (e.g. DCM, BENZ) is one monomer. The hybrid calculator:

  • Never drops atoms or whole monomers when they approach each other.
  • Scales pair interaction energies by monomer center-of-mass (COM) distance r, not atom–atom distance.
  • Colors in the figure below are per monomer (same CHARMM residue, same PhysNet batch index).

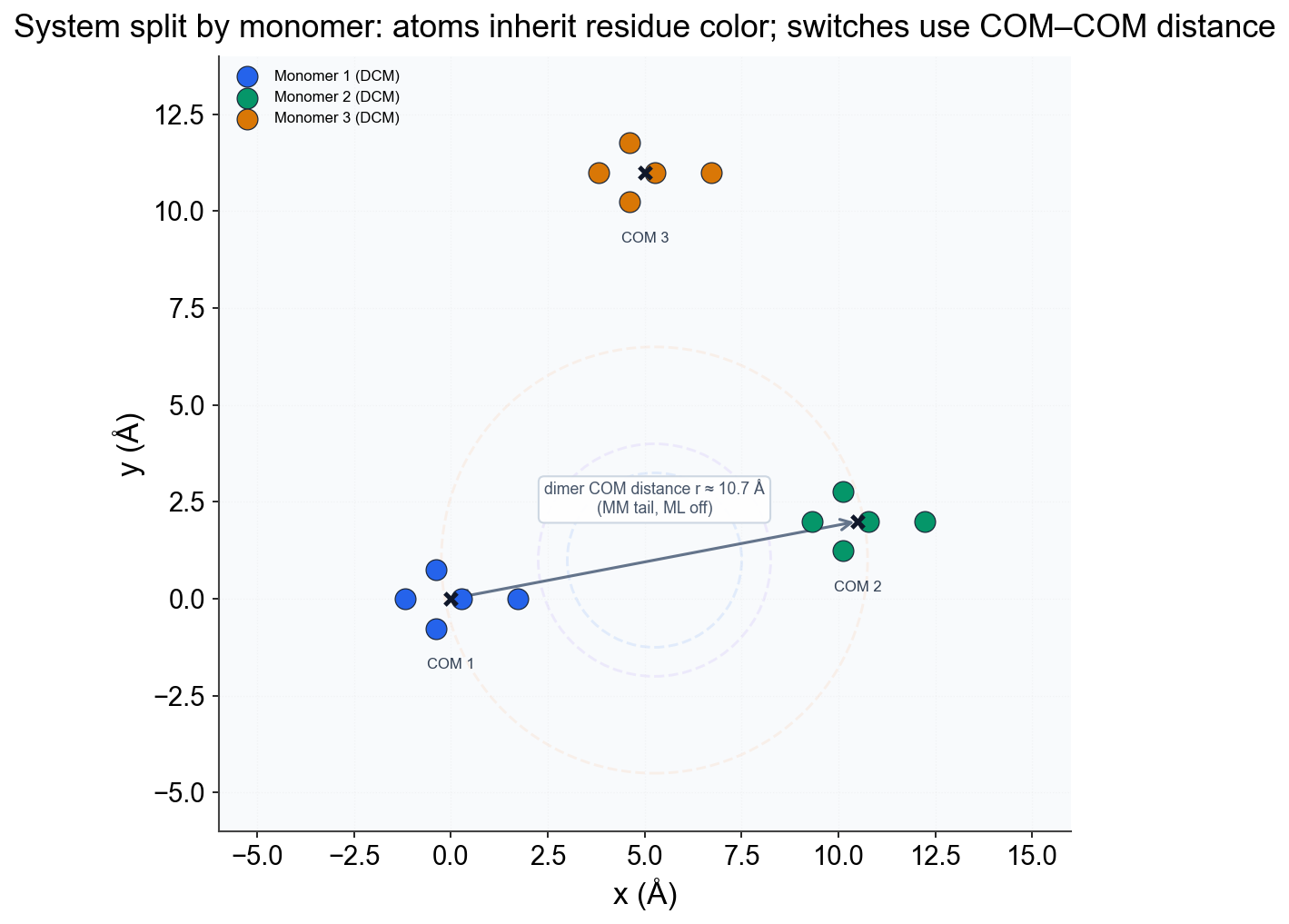

Three DCM monomers colored by residue; dimer COM distance annotated

For the highlighted dimer (monomers 1 and 2), r ≈ 10.5 Å falls in the MM tail: ML two-body is off (s_ML = 0), switched JAX MM is partially on and tapering toward zero at 13 Å.

Dimer force vectors at cutoff distances

Illustrative switched hybrid forces (finite difference on
E = s_ML(r)·E_ML + s_MM(r)·E_MM) for DCM and ACO dimers at COM separations inside, on, and beyond the default switch regions. Arrow color = |F| (kcal/mol/Å); blue / orange = monomer 1 / 2.

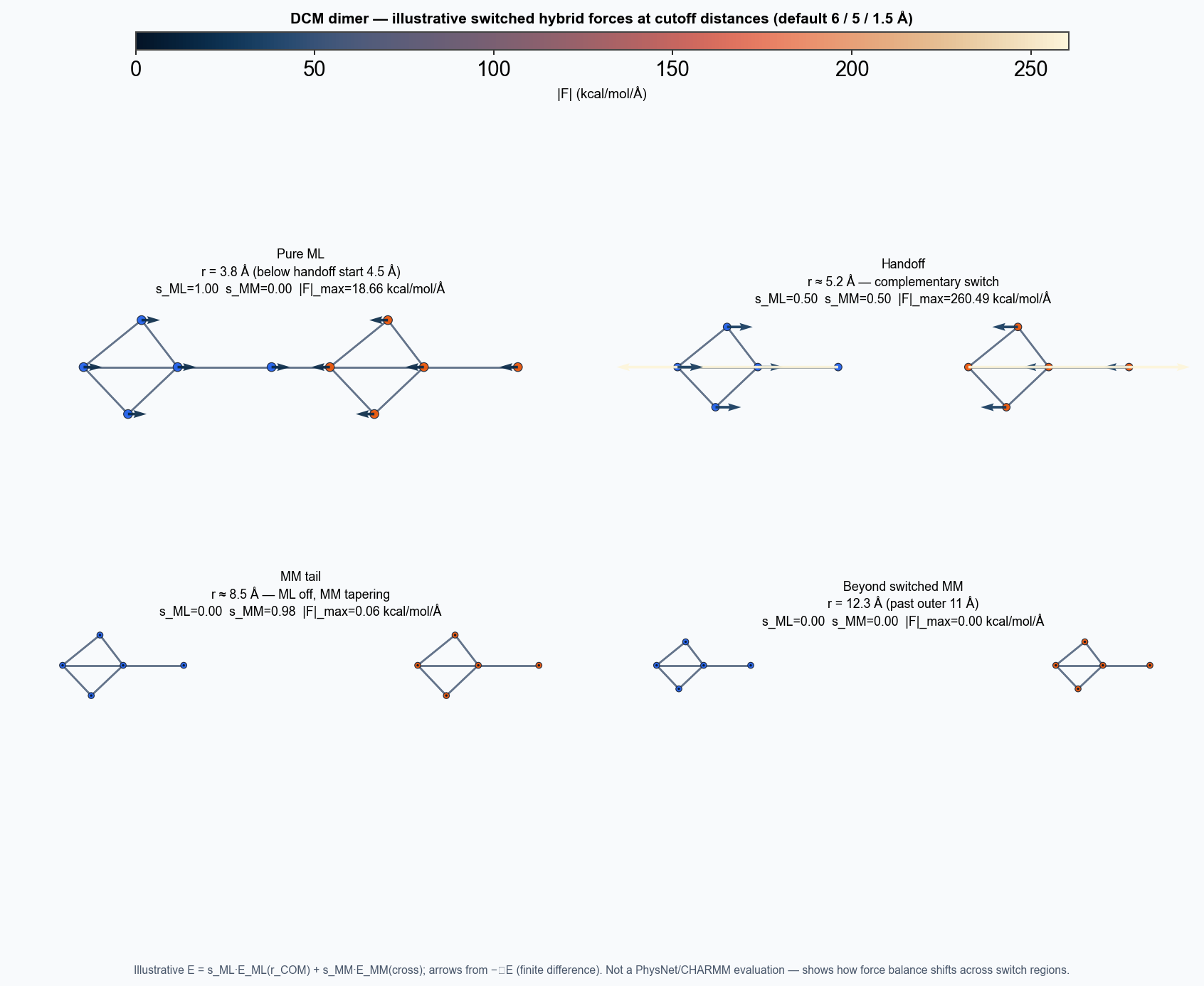

DCM dimer ASE view with force quivers at four COM distances

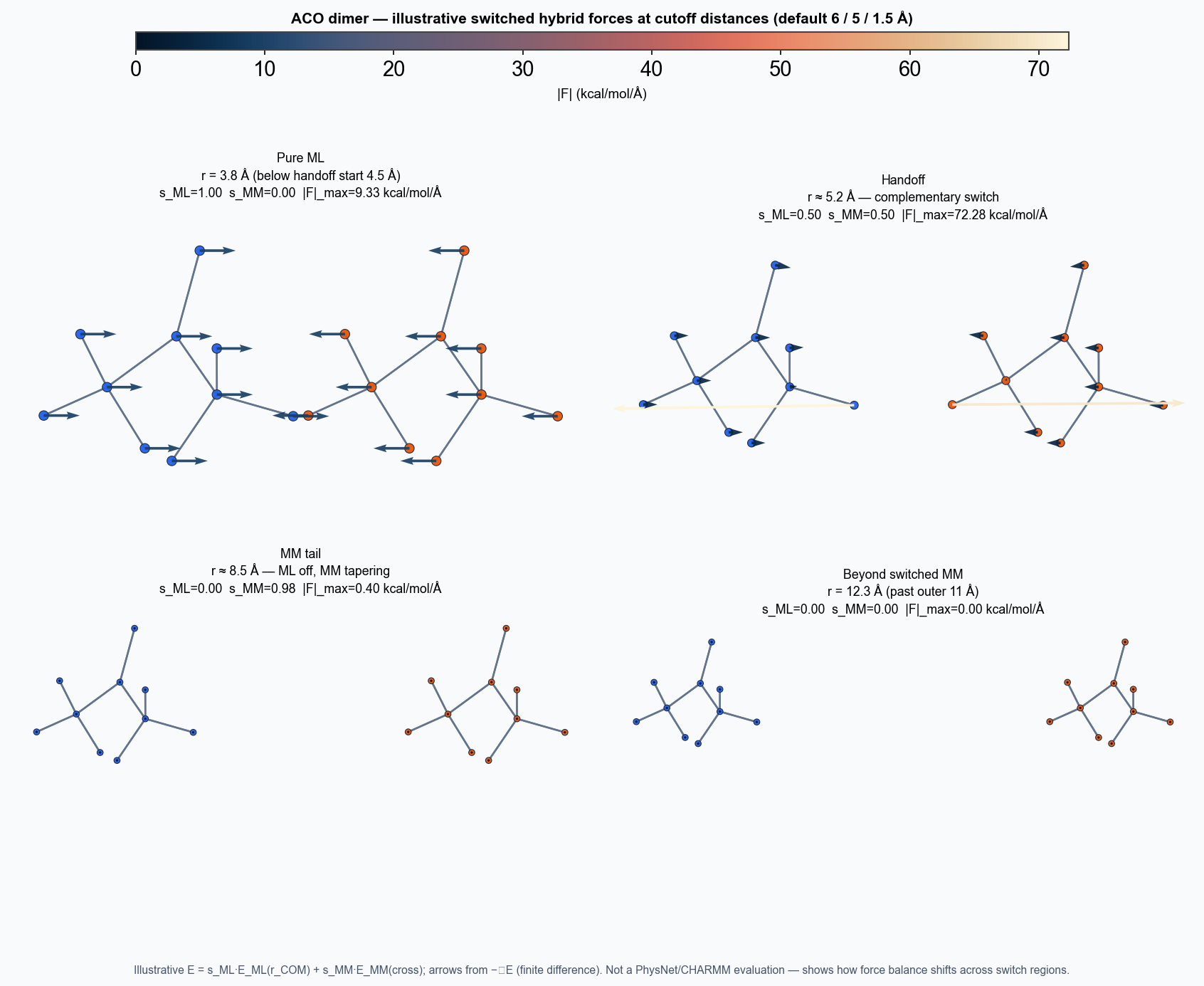

ACO dimer ASE view with force quivers at four COM distances

Panel Typical COM r Switch region
Pure ML ~5.8 Å s_ML ≈ 1, MM off
Handoff ~7.25 Å s_ML + s_MM = 1
MM tail ~10.5 Å ML off, MM tapering
Beyond switched MM ~14.3 Å both two-body switches ≈ 0

These are schematic (LJ+Coulomb cross + r⁻⁶ ML well), not checkpoint energies. For quantitative curves from PyCHARMM, run the dimer LR scans.

2. COM-distance cutoffs (default 8 / 5 / 1.5 Å)

Three YAML/CLI knobs control the handoff (see mm_switch_on, mm_switch_width, ml_switch_width):

Symbol Default Meaning
mm_switch_on 8.0 Å End of ML→MM handoff; MM scale reaches 1
ml_switch_width 1.5 Å Width of ML taper below mm_switch_on
mm_switch_width 5.0 Å MM outer tail; pairs off at mm_switch_on + width = 13 Å

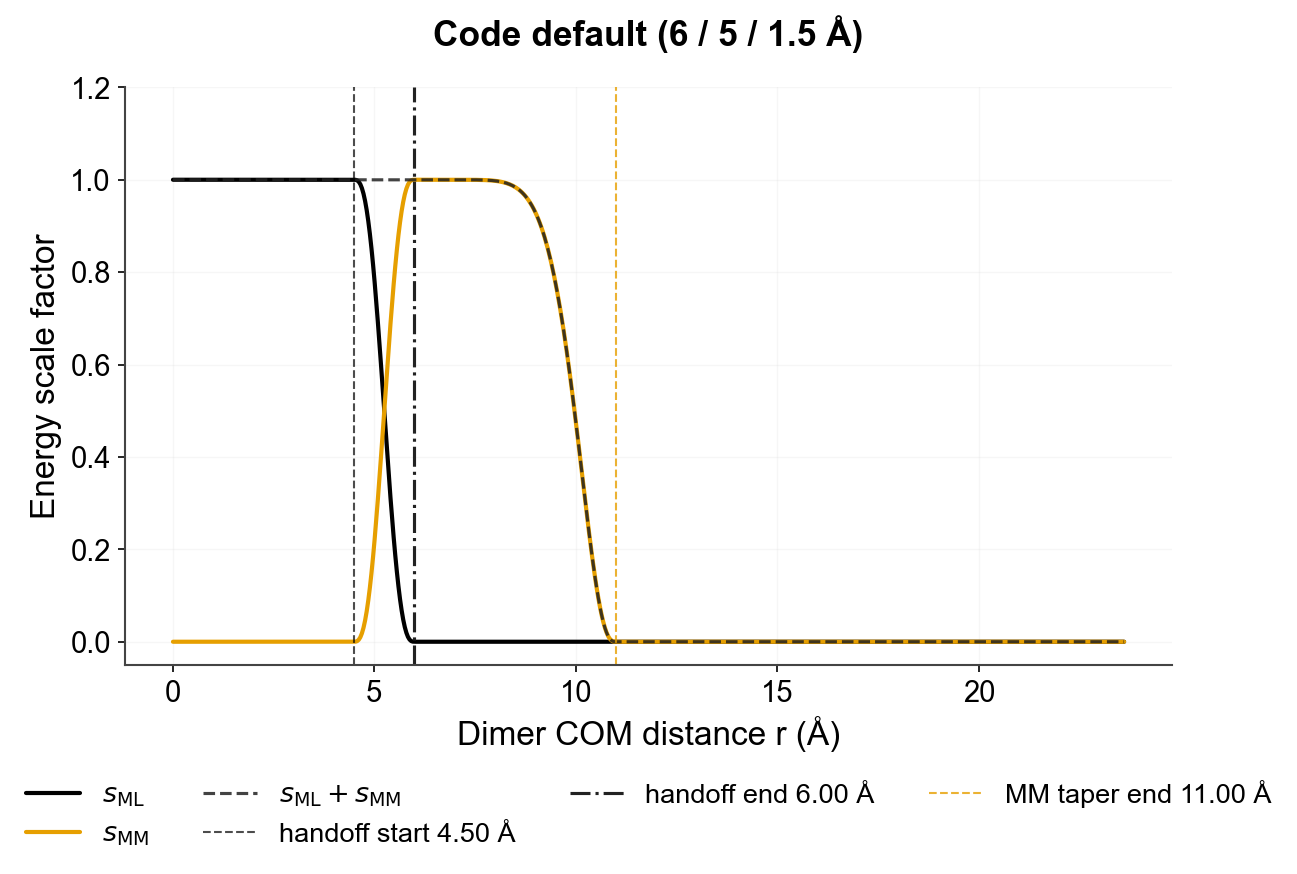

ML and MM scale factors vs COM distance (code default)

Radius ladder (one glance)

The same defaults on a single COM axis, compared with CHARMM IMAGE cutnb (PBC liquid, 14 Å) and jax-pme real-space cutoff (6 Å):

COM-distance regions: ML, handoff, JAX MM, CHARMM cutnb

Region (default) COM range r What runs
Pure ML r ≤ 6.5 Å PhysNet monomer + dimer batches; switched MM off
Handoff 6.5 < r < 8 Å s_ML + s_MM = 1 (complementary)
MM tail 8 ≤ r < 13 Å Switched LJ + MIC Coulomb in JAX pair loop
Beyond 13 Å r ≥ 13 Å No switched two-body MM/ML; long-range Coulomb from lr_solver if enabled

Preset overlays and complementary vs legacy MM windows: mlpot-settings.md.

3. Dual stack: who computes what

ML-tagged atoms live in the PSF. CHARMM BLOCK zeros classical ELEC/VDW on those atoms so the Python callback owns nonbonded ML/MM physics.

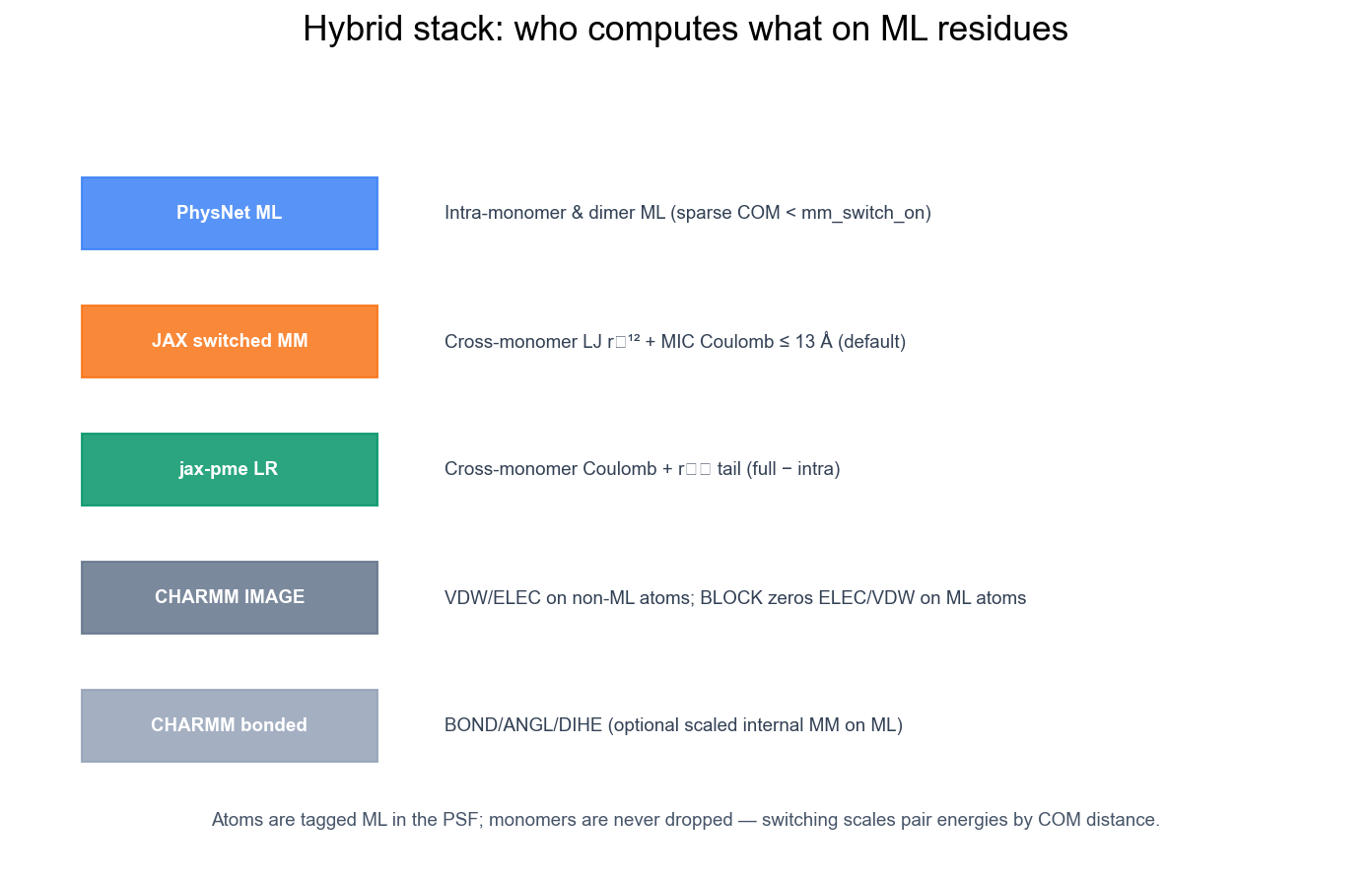

Responsibility stack: PhysNet, JAX MM, jax-pme, CHARMM

Layer Pair scope Typical cutoff
PhysNet Intra-monomer + sparse dimers with r < mm_switch_on Model cutoff + COM gate
JAX switched MM Cross-monomer atom pairs mm_switch_on + mm_switch_width ≈ 13 Å
jax-pme (lr_solver: jax_pme) Cross-monomer Coulomb + optional r⁻⁶ tail SR 6 Å + k-space
CHARMM IMAGE Non-ML atoms; VDW on ML path when periodic_external cutnb ≈ 14 Å (PBC, scaled to box)

Intra-monomer electrostatics stay in ML; jax-pme uses E_full − E_intra on cross-monomer terms so ML is not double-counted.

4. Long-range Coulomb solvers

With mm_nonbond_mode: jax_mic (default), short-range LJ r⁻¹² stays on the switched pair list. Coulomb beyond the pair loop is optional:

Long-range solver comparison table

lr_solver Best for Notes
mic Default (including PBC jax_mic) Truncated MIC only; no k-space
jax_pme Opt-in production / CHARMM PME parity Ewald / PME / P3M; cross-monomer full−intra
nvalchemiops_pme periodic_external benchmarks Full-box PME via nvalchemiops
scafacos periodic_external + Fortran PME Requires libfcs.so

Schematic split (illustrative, not a quantitative PME decomposition):

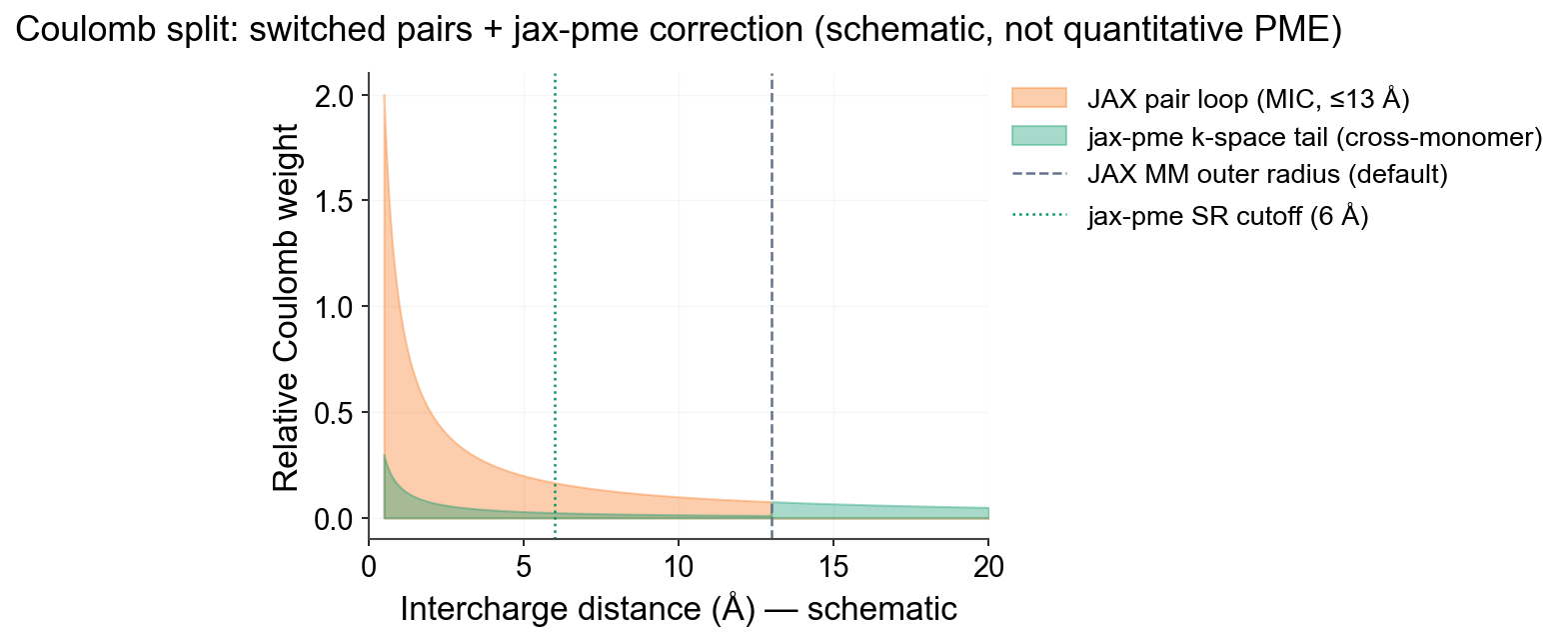

Coulomb short-range vs k-space tail schematic

CLI / YAML examples and solver sweeps: long-range-solver-tutorial.md.

5. CHARMM vs JAX list radii (do not conflate)

Two independent neighbor systems run each step (NONBOND_LISTS.md):

List Owner Outer radius (typical)
CHARMM JNB / IMAGE Fortran cutnb 14–18 Å (PBC scaled to L/2)
JAX MM pairs Python callback mm_switch_on + mm_switch_width = 13 Å
ML dimers PhysNet batches COM < mm_switch_on (8 Å default)

CHARMM atom-pair VDW/ELEC switching (fswitch/vfswitch at ctonnb–ctofnb) is documented in CHARMM CGenFF JAX clone. MLpot COM handoff switching (this page) scales whole dimer pair energies by monomer separation.

Campaign YAML should set the same mm_switch_on / mm_switch_width / ml_switch_width on PyCHARMM and JAX-MD legs so handoffs stay aligned.

6. Quick YAML block

defaults:
  mm_switch_on: 8.0
  mm_switch_width: 5.0
  ml_switch_width: 1.5
  mm_nonbond_mode: jax_mic
  lr_solver: jax_pme
  jax_pme_method: ewald
  jax_pme_sr_cutoff: 6.0
  jax_pme_dispersion: true

Liquid DCM boxes also need L/2 safely above CHARMM cutnb — see liquid-box workflow.

Example dimer scans (DCM / ACO + all LR backends)

Rigid COM-distance scans for DCM:2 and ACO:2 compare mic, jax-pme (ewald/pme/p3m), and periodic_external backends (jax-pme, nvalchemiops, ScaFaCoS):

export MMML_CKPT=/path/to/checkpoint
./scripts/run_dcm_aco_dimer_lr_scans.sh
uv run python scripts/plot_dimer_lr_scan_compare.py --root artifacts/dimer_lr_scans

Full tables and single-scan examples: tests/functionality/dimer_scans/README.md.
