aaa.ama peptide dataset → CHARMM → PhysNet → partial ML/MM¶

End-to-end example using the public MMunibas/aaa.ama repository: download the 34-atom capped tri-alanine ML training set, inspect energies and forces, rebuild the solvated system in CHARMM, train a small PhysNet model, and register peptide ML + water MM (the mixed embedding pattern from upstream dyna.sol.py).

Canonical CLI: mmml md-embedding (train → build → run) automates the same pipeline; the sections below remain useful for manual steps and inspection.

Functionality tests: tests/functionality/aaa_ama/README.md and tests/functionality/embedding/README.md.

1. Fetch and identify the dataset¶

The NPZ lives at aaa_model/dataset_aaa.npz (~18 MB). MMML can download and summarize it:

uv run python scripts/analyze_aaa_ama_dataset.py --download

Bundled summary (after running the script): mmml/data/external/aaa_ama_dataset_summary.json.

Field	Value
Frames	12 500
Atoms / frame	34
Net charge	+1 e
Stoichiometry	C₉H₁₈N₃O₄
Molecule	ACE–ALA×3–CT3 peptide (training topology)
Arrays	`N`, `Z`, `R`, `E`, `F`, `Q`, `D` (eV, eV/Å, e·Å)

Species in the NPZ: one chemical species (the peptide). Histograms below group by element (H, C, N, O) as a practical per-species view of forces. The NPZ does not include TIP3 waters — those are MM-only in the solvated CHARMM setup.

Structure (frame 0)¶

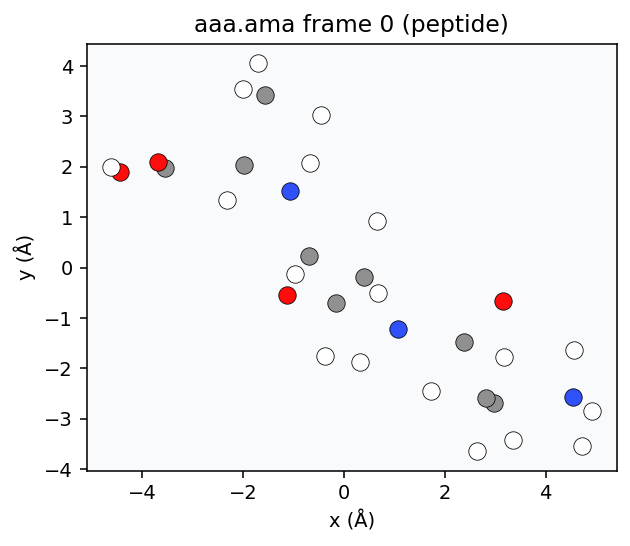

Peptide frame 0

Energy and forces¶

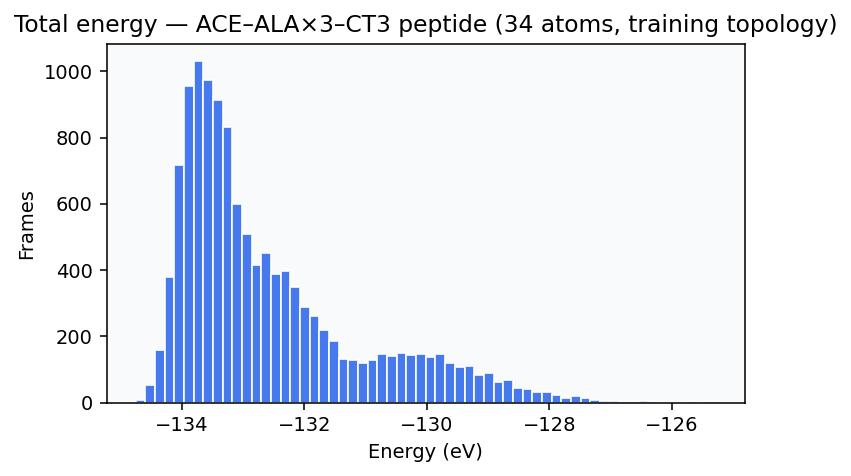

Energy histogram

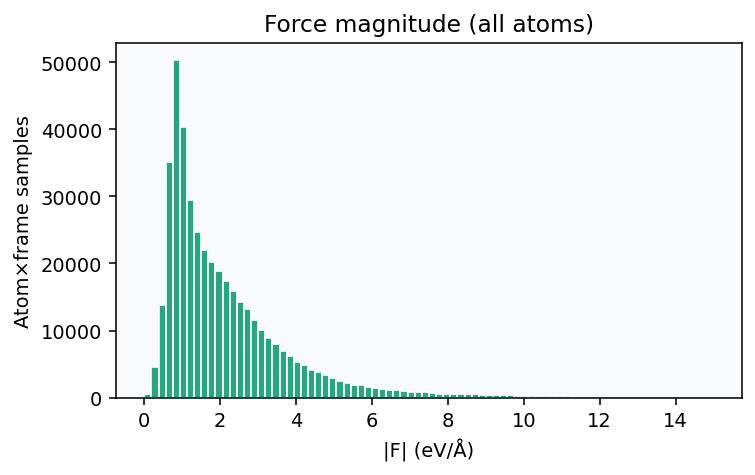

Force magnitude histogram

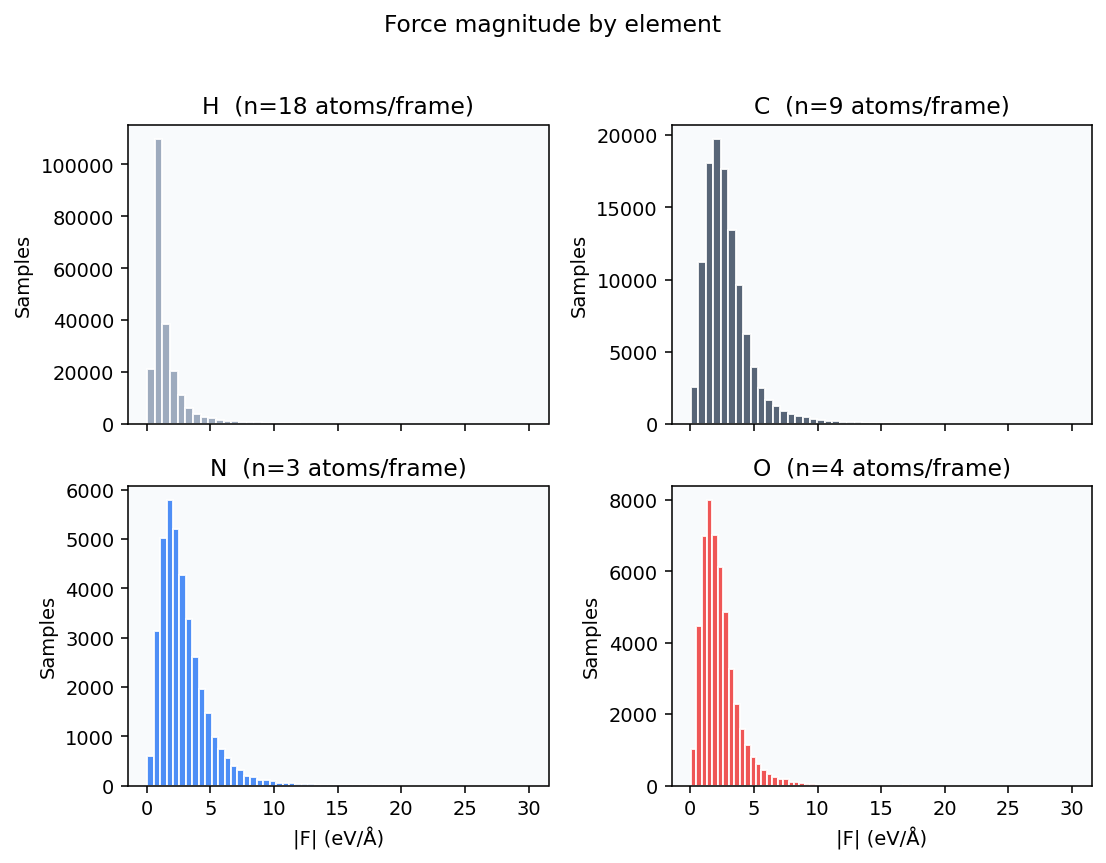

Force magnitude by element

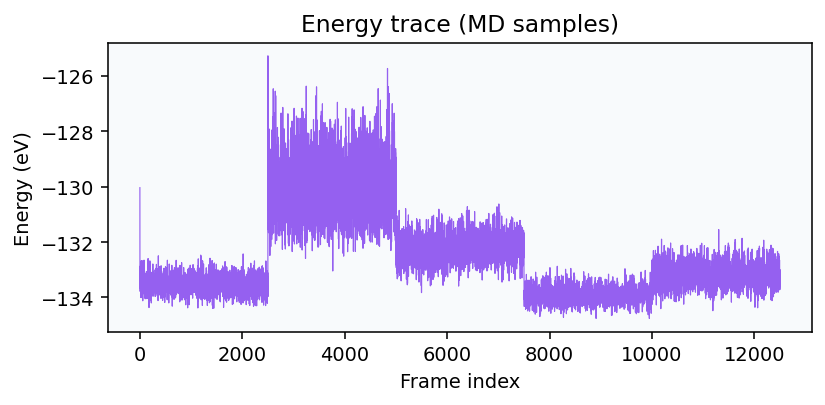

Energy trace

Regenerate figures:

uv run python scripts/analyze_aaa_ama_dataset.py --download

Unit tests (no CHARMM, no 18 MB download required if summary is committed):

uv run pytest tests/unit/test_aaa_ama_dataset.py -q

2. Recreate the system in CHARMM¶

The upstream driver aaa_model/dyna.sol.py builds:

Peptide — read.psf_card("aaa.psf"), segment PEPT
Solvent — TIP3 waters from init.wat.pdb, segment WAT
PBC — cubic crystal + IMAGE; SHAKE on water; heavy-atom COM restraint on solute
Minimization — CGENFF MM, then PhysNet after pycharmm.MLpot on PEPT only

Clone the repo and run with your CHARMM toppar (paths in the script assume a local toppar.str):

git clone https://github.com/MMunibas/aaa.ama.git
cd aaa.ama/aaa_model
# supply aaa.psf, aaa.crd, init.wat.pdb, step5.pdb per your CHARMM build
python dyna.sol.py

MMML bonded reference (protein PSF)¶

For a pure MM bonded reference on ACE–ALA×3–CT3 using top_all36_prot (42 atoms — atom count may differ from the 34-atom training topology):

export CHARMM_HOME=... CHARMM_LIB_DIR=... LD_LIBRARY_PATH=...
./scripts/mmml-charmm-mpirun.sh python tests/functionality/aaa_ama/report_charmm_bonded.py

Example output shape:

CHARMM bonded energies (kcal/mol) — ACE–ALA×3–CT3, seg PEPT
  bond       <...>
  angl       <...>
  dihe       <...>
  impr       <...>
  cmap       <...>
  total      <...>

Important: compare NPZ E/F labels only after you have a PSF whose atom order matches Z in the NPZ. The bundled tri-alanine water box uses 42-atom CGENFF TRIA — related chemistry, different atomization.

For JAX vs CHARMM bonded cross-checks on CGENFF, see cgenff-jax-clone.md.

3. Train a small PhysNet model¶

See md-embedding smoke results for a short training run (8 epochs), validation parity plots, and CHARMM box figures.

# One-shot docs pipeline (train → eval → build → figures)
export CHARMM_HOME=... CHARMM_LIB_DIR=... LD_LIBRARY_PATH=...
JAX_PLATFORMS=cpu MMML_NO_CHARMM_MPI=1 uv run python scripts/collect_md_embedding_docs_results.py

Equivalent manual split with fix-and-split:

mmml fix-and-split --efd mmml/data/external/dataset_aaa.npz -o artifacts/md_embedding/aaa/splits \
  --preserve-units --coords-in angstrom --energy-in ev --force-in ev-angstrom \
  --train-frac 0.9 --valid-frac 0.1 --test-frac 0

Manual equivalent (shuffle split only):

# Optional: hold out 10% frames
uv run python - <<'PY'
import numpy as np
from pathlib import Path
d = np.load("mmml/data/external/dataset_aaa.npz", allow_pickle=True)
n = len(d["E"])
idx = np.arange(n)
rng = np.random.default_rng(0)
rng.shuffle(idx)
split = int(0.9 * n)
train = {k: d[k][idx[:split]] for k in d.files}
valid = {k: d[k][idx[split:]] for k in d.files}
out = Path("artifacts/aaa_ama")
out.mkdir(parents=True, exist_ok=True)
np.savez(out / "train.npz", **train)
np.savez(out / "valid.npz", **valid)
print("wrote", out / "train.npz", out / "valid.npz")
PY

mmml physnet-train \
  --data artifacts/aaa_ama/train.npz \
  --valid-data artifacts/aaa_ama/valid.npz \
  --ckpt-dir artifacts/aaa_ama/checkpoints \
  --tag aaa_smoke \
  --num-atoms 34 \
  --max-atomic-number 8 \
  --features 32 \
  --num-epochs 30 \
  --batch-size 16 \
  --energy-weight 1.0 \
  --forces-weight 50.0 \
  --cutoff 5.0 \
  --num-iterations 2 \
  --n-res 1

After training, export for MLpot (Orbax → JSON if needed):

mmml orbax-to-json --checkpoint artifacts/aaa_ama/checkpoints/aaa_smoke --output artifacts/aaa_ama/aaa_params.json

See physnet-train for full flags. Upstream dyna.sol.py uses TensorFlow 1.x checkpoints under ./model/aaa with run_aaa.inp — MMML uses PhysNetJAX; retrain or convert checkpoints before mixing formats.

4. Mixed MM / ML-MM calculator (peptide + water)¶

Upstream registers PhysNet only on PEPT; waters keep CHARMM nonbonded:

selection = pycharmm.SelectAtoms(seg_id='PEPT')
pycharmm.MLpot(ml_selection=selection, ...)

MMML equivalent (partial ML / MM)¶

from mmml.interfaces.pycharmmInterface.mlpot.partial_mm import (
    PartialMlMmConfig,
    register_mlpot_partial_mm,
)
from mmml.interfaces.pycharmmInterface.mlpot.setup import (
    load_physnet_mlpot_bundle,
    select_by_seg_id,
)

# After loading solvated PSF (PEPT + WAT) and building ASE atoms for PEPT:
z_pept = ase_pept.get_atomic_numbers()
params, model, pyCModel = load_physnet_mlpot_bundle(
    "artifacts/aaa_ama/aaa_params.json",
    len(z_pept),
    ase_pept,
    n_monomers=1,
)

ctx = register_mlpot_partial_mm(
    pyCModel,
    z_pept,
    PartialMlMmConfig(ml_seg_id="PEPT", ml_charge=1.0, ml_fq=True),
)

Then energy.show() / minimize.run_sd / dynamics as in mmml/interfaces/pycharmmInterface/mlpot/README.md.

Current limitations¶

Feature	Status
Peptide ML + water MM (segment selection)	API: `register_mlpot_partial_mm`
ML–MM pair electrostatics (`idxu`/`idxv`)	Not implemented (`NotImplementedError`)
Homogeneous hybrid liquid (`md-system`, all ML monomers)	Production path — see hybrid-potential-regions.md
Some monomers hybrid + some pure MM in one cluster liquid	Not supported in `md-system` yet

For solvated peptide MD, the partial segment pattern above matches aaa.ama dyna.sol.py. For bulk liquids (DCM, ACO, …), use full hybrid md-system on a single species.

5. Suggested validation checklist¶

analyze_aaa_ama_dataset.py — plots + JSON summary
pytest tests/unit/test_aaa_ama_dataset.py
CHARMM report_charmm_bonded.py — bonded term table
physnet-train smoke — loss decreases on train/valid NPZ
Register PEPT MLpot on minimized solvated PSF — ENER finite, SD lowers GRMS
(Optional) Compare ML energy on one NPZ frame to label E after unit alignment

References¶

aaa.ama repository
Hybrid potential regions
Tri-alanine water box (CGENFF MM cross-check)
Partial ML module: mmml/interfaces/pycharmmInterface/mlpot/partial_mm.py
