Periodic boundaries: CHARMM super system vs MIC, FMM, and spatial decomposition

How PyCHARMM treats periodicity with explicit IMAGE translations (a lattice “super system”), how the JAX CGenFF clone and jax-md MIC path differ, and where PME / FMM and domain decomposition fit in MMML.

Figures regenerate with:

uv run python scripts/plot_pbc_super_system.py

Related: Tri-alanine water box, CHARMM CGenFF JAX clone, Long-range solver tutorial, Spatial ML MPI, and the source note mmml/interfaces/pycharmmInterface/mlpot/NONBOND_LISTS.md.

---

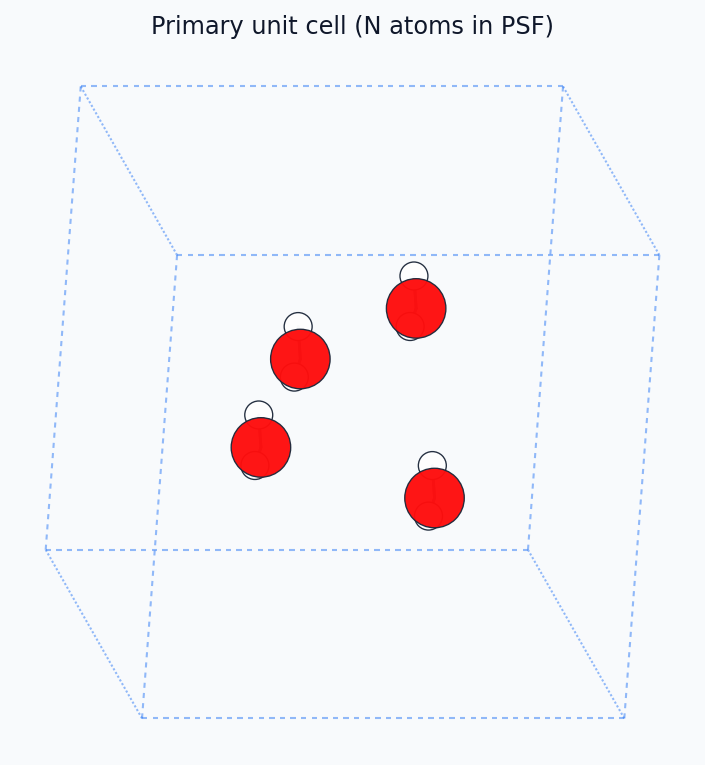

1. Primary unit cell

The simulation box is a parallelepiped (usually cubic). The PSF stores N atoms in the primary cell only — coordinates you write to DCD, the atoms ASE shows in a trajectory viewer, and the geometry the JAX clone reads from NumPy.

In MMML box builders (prepare_charmm_pbc, tri-alanine water, make-box) this is followed by image byres and switched NBONDS with cutnb / cutim sized for the box (see trialanine-water-box.md).

---

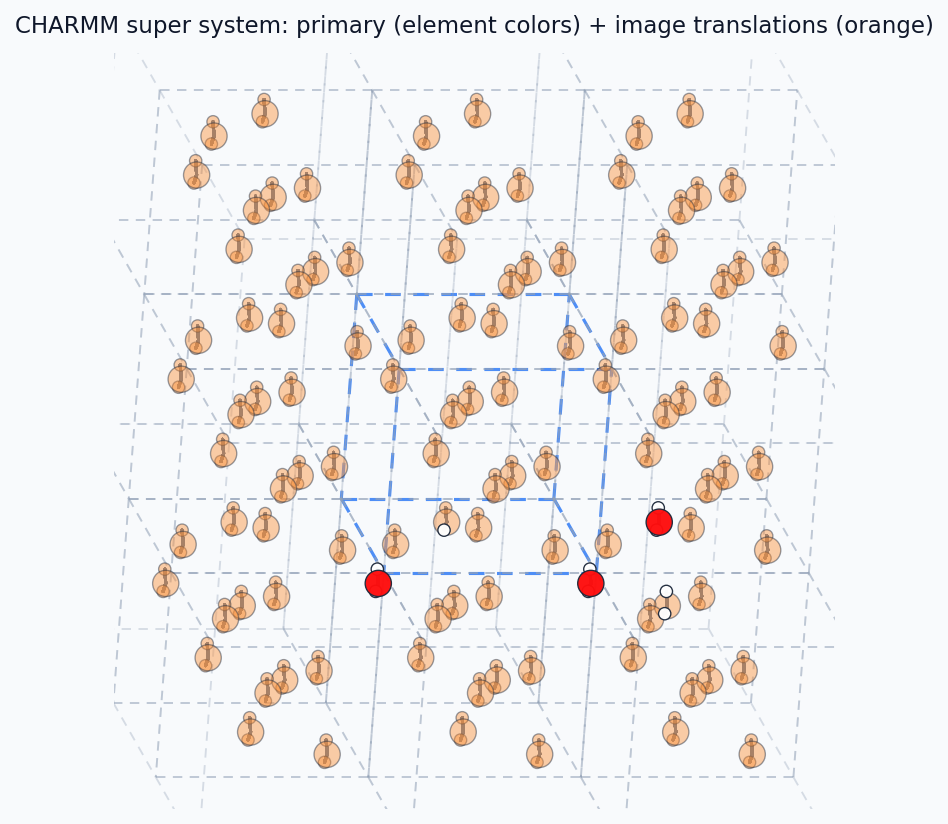

2. CHARMM IMAGE super system

CHARMM does not integrate Newton’s equations on a literal 27× replica of the box. Instead, the IMAGE facility builds a super system in data structures:

1. Crystal defines lattice transforms (NTRANS translation operations).
2. IMAGE maps each residue into image sites (by residue for image byres).
3. The nonbonded list (UPINB / UPIMNB) includes pairs between primary atoms and image sites within cutnb (and image cutoff cutim).

Conceptually, for each primary atom you can think of ghost sites at R + n·L that enter the pair loop the same way real atoms would in an enlarged cluster:

Quantity	Primary cell	Image / super-system bookkeeping
Stored coordinates	N atoms	still N atoms
Pair list	primary–primary	primary–image within cutoff
ENER terms	BOND, VDW, ELEC, …	image contributions IMNB, IMEL, …
Integrator	moves primary atoms	images follow lattice transforms

That last row is why trajectory cross-checks must map VDW + IMNB and ELEC + IMEL when comparing to JAX MIC totals (see cgenff-jax-clone.md and cgenff_bonded_reference.py).

flowchart LR
  subgraph primary [Primary cell]
    PSF[N atoms in PSF]
    COOR[Coordinates x,y,z]
  end
  subgraph image [IMAGE super system]
    XTL[CRYSTAL / NTRANS]
    IMAT[Image atom tables]
    NB[List: primary + image pairs]
  end
  subgraph ener [ENER FORCE]
    VDW[VDW + IMNB]
    EL[ELEC + IMEL]
  end
  PSF --> IMAT
  COOR --> NB
  XTL --> IMAT
  IMAT --> NB
  NB --> VDW
  NB --> EL

MMML PyCHARMM path: pbc_env.prepare_charmm_pbc → crystal build → image byres → apply_pbc_nbonds. After READ PARAM APPEND (CGENFF reload), call restore_charmm_cubic_crystal_lattice before the next UPINB — IMAGE tables are cleared by parameter I/O.

---

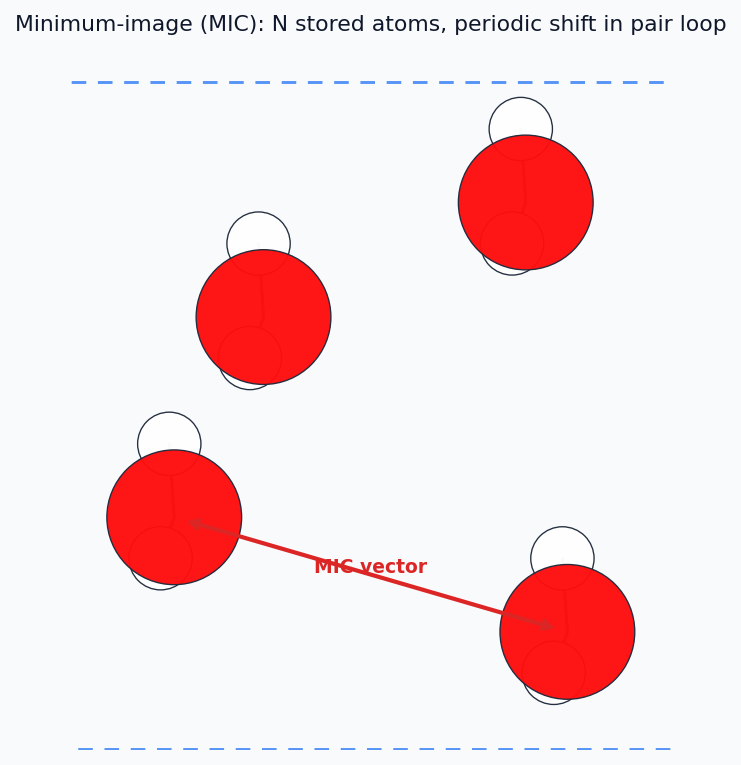

3. Minimum-image (MIC) — JAX CGenFF clone & jax_mic MLpot

The JAX CGenFF clone (mm_system_energy.py) and the default jax_mic MLpot MM path keep only N atoms in memory. For each candidate pair within cutnb, the displacement uses the minimum-image convention (shortest vector across periodic boundaries). No separate image atom array is allocated in Python/JAX.

	CHARMM IMAGE super system	MIC (JAX / many MD codes)
Coordinates	N primary	N primary
Periodic partners	explicit image sites in list	implicit via find_mic / lattice shift
Energy bookkeeping	split primary vs image ENER keys	single vdw / elec pair sum
Typical use in MMML	live PyCHARMM ENER FORCE	mm_system_energy_and_forces, switched MLpot MM

For truncated Coulomb (lr_solver=mic, default), JAX and CHARMM should agree on total nonbonded energy when cutoffs and exclusion lists match; per-term VDW vs IMNB splits are not 1:1 across engines.

---

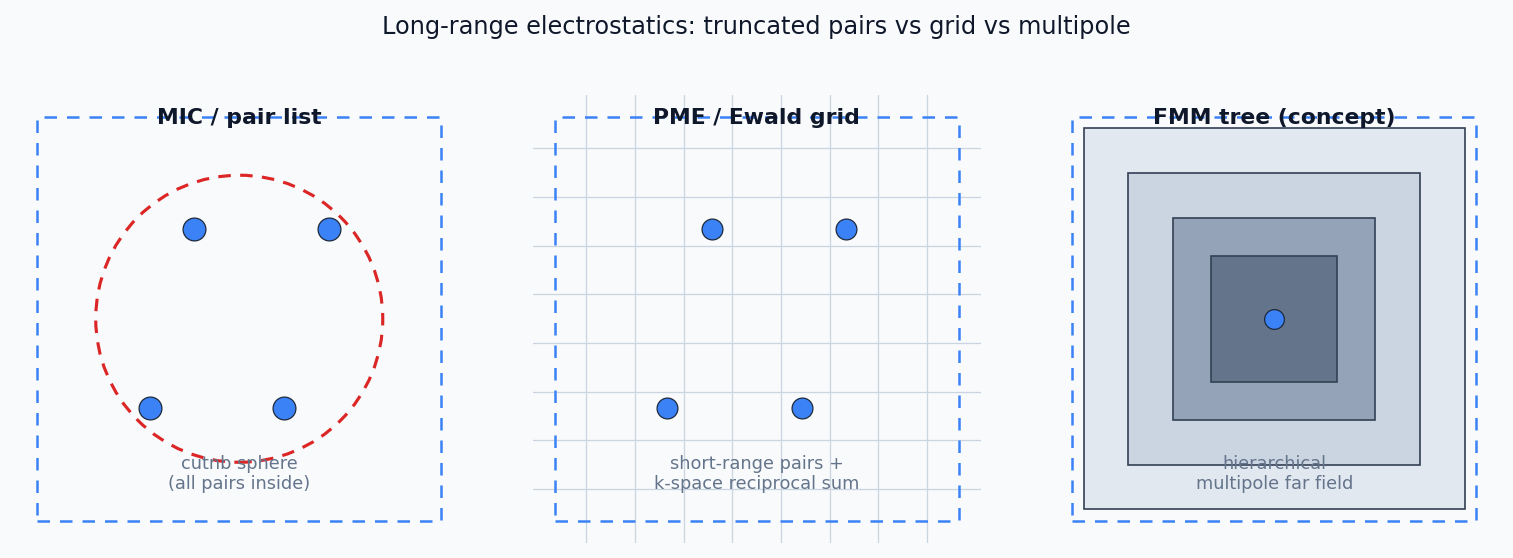

4. Long range: PME, Ewald, FMM — different layer than IMAGE

IMAGE / MIC answer: “which periodic copy of j is closest to i for a short-range pair within cutnb?”

PME / Ewald / fast multipole (FMM) answer: “how do we sum Coulomb (and sometimes dispersion) beyond the pair cutoff without a naive O(N²) sum?”

Method	Near field	Far field	MMML entry points
MIC (truncated)	all pairs < cutnb, switched	none (cutoff)	lr_solver=mic, CGenFF JAX clone
PME / Ewald	short-range pair sum	reciprocal grid	lr_solver=jax_pme, CHARMM ewald, ScaFaCoS
FMM (concept)	direct multipole locally	hierarchical tree	not native in CHARMM production path; same role as k-space Ewald

In hybrid MLpot, short-range switched LJ + Coulomb stay in the JAX pair loop; long-range Coulomb (and optional r⁻⁶ dispersion) can be delegated to jax-pme, nvalchemiops PME, or ScaFaCoS — see long-range-solver-tutorial.md.

Not the same as spatial MPI

PME/FMM address electrostatics at long distance. Domain decomposition (next section) addresses parallel work partitioning across CPU/GPU ranks.

---

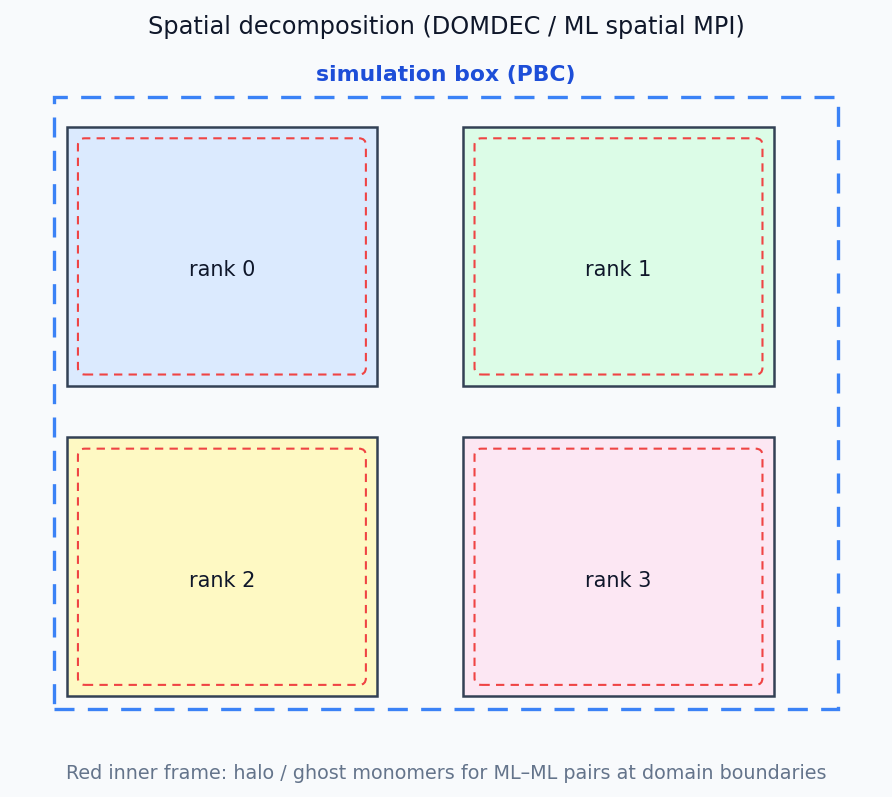

5. Spatial decomposition (DOMDEC, ML spatial MPI)

Spatial decomposition splits the primary simulation volume across MPI ranks. Each rank owns atoms whose centers fall in its domain; halo / ghost regions duplicate monomer data needed for ML dimer pairs or CHARMM pair lists at boundaries.

Approach	What is replicated	Why
CHARMM IMAGE	lattice image sites for PBC	periodic pair list within one rank
DOMDEC / spatial MPI	ghost atoms/monomers in neighbor domains	parallel force evaluation
MIC (single rank)	nothing	single-process JAX/MM

MMML spatial MPI (mlpot-spatial-mpi.md) uses a Python grid today; CHARMM DOMDEC metadata is not yet wired into MLpot (Phase 3). That is orthogonal to whether Coulomb uses MIC or PME on each rank.

flowchart TB
  subgraph pbc [Periodicity layer]
    IMG[CHARMM IMAGE / MIC]
  end
  subgraph lr [Long-range layer]
    PME[jax-pme / ScaFaCoS / CHARMM Ewald]
  end
  subgraph par [Parallelism layer]
    DOM[DOMDEC / spatial MPI halos]
  end
  IMG --> PME
  IMG --> DOM

---

6. Practical map in MMML

Task	Periodic model	Doc / code
Build solvated CGENFF box	CHARMM crystal + IMAGE	trialanine_water_box.py, trialanine-water-box.md
Live vs JAX energy check	CHARMM IMAGE ENER; JAX MIC	cgenff-jax-clone.md, demo_charmm_jax_trajectory_energy.py
Hybrid MD (md-system)	CHARMM IMAGE + MLpot MIC sync	mlpot-settings.md, pbc_env.py
LR Coulomb beyond 13 Å switch	PME / ScaFaCoS	long-range-solver-tutorial.md
Multi-rank ML	spatial domains + halos	mlpot-spatial-mpi.md

---

7. Regenerating figures (ASE)

The teaching cell uses four gas-phase waters in a 14 Å cube (not a production solvent box). Script: scripts/plot_pbc_super_system.py; library: mmml/utils/pbc_super_system_plot.py.

Orthographic projection matches other MkDocs structure figures (mmml/utils/ase_structure_plot.py): fixed rotation, Jmol-style colors, dashed unit-cell outlines.

from pathlib import Path
from mmml.utils.pbc_super_system_plot import generate_pbc_doc_figures

generate_pbc_doc_figures(Path("docs/images/pbc"))

To overlay your trajectory: read an extxyz/DCD frame with ASE, set atoms.set_pbc(True), and reuse plot_charmm_super_system / plot_mic_convention patterns with the same draw_orthographic_structure helper.
