Tutorial: long-range Coulomb solvers in MMML¶

This guide shows how to run MIC, jax-pme (Ewald / PME / P3M), nvalchemiops PME, native ewald (pure JAX, no external library or CUDA requirement), and ScaFaCoS Coulomb backends in hybrid ML/MM workflows, using the DCM liquid box as a concrete example.

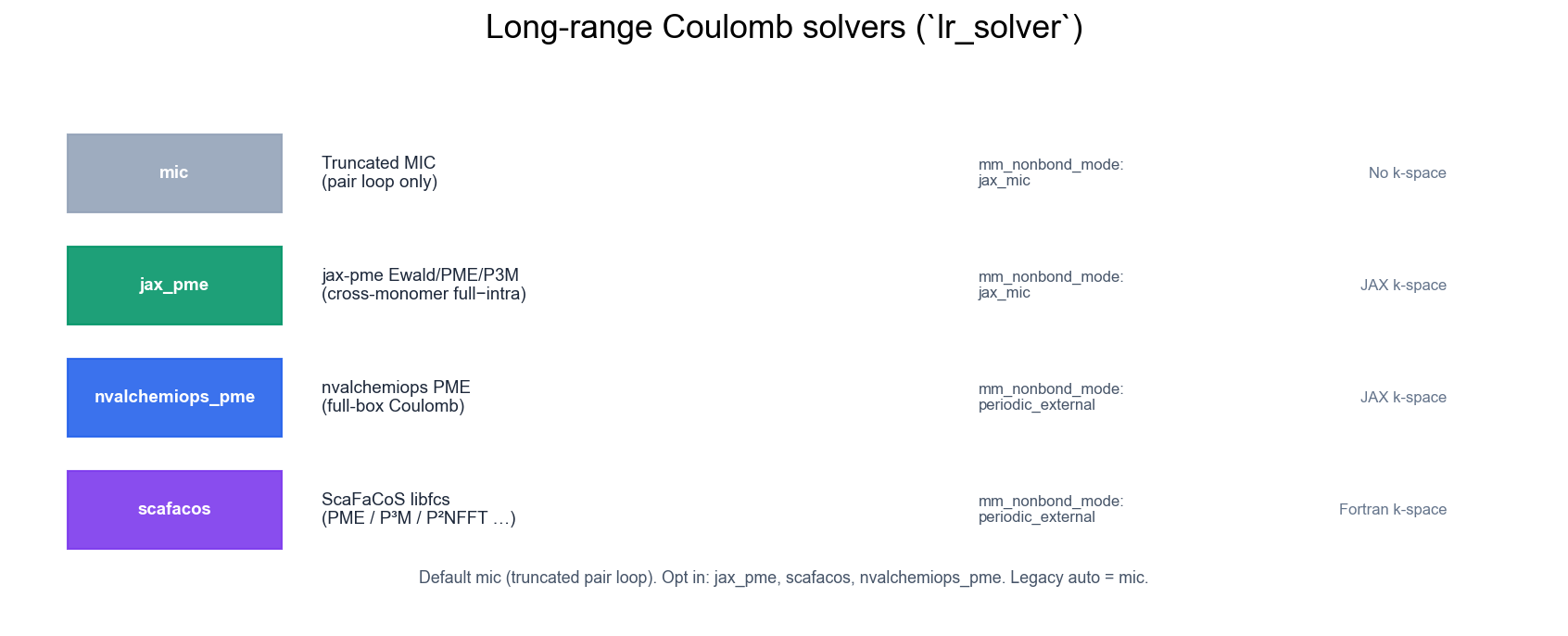

Long-range solver comparison (mm_nonbond_mode and k-space)

For COM-distance cutoffs, colored monomer regions, and how the dual stack fits together, see Hybrid potential: cutoffs, regions, and long-range solvers.

scripts/run_dcm_liquid_workflow.sh — baseline DCM liquid pipeline
scripts/run_dcm_long_range_workflow.sh — solver comparison sweep
scripts/check_ewald_train_md_pme_parity.py — train↔MD parity gate for native ewald
scripts/check_nvalchemiops_train_md_pme_parity.py — train↔MD parity gate for nvalchemiops PME
tests/functionality/long_range/ — standalone validation
mmml/interfaces/pycharmmInterface/mlpot/LONG_RANGE_ELECTROSTATICS.md — architecture
examples/hybrid_mm_charges/ — end-to-end train + MD YAMLs per charge mode / solver

1. Two MM nonbond modes¶

Mode	LJ	Coulomb	When to use
`jax_mic` (default)	Switched JAX pairs (~13 Å)	MIC in pair loop, or jax-pme with `--lr-solver jax_pme`	Standard hybrid MLpot; jax-pme Coulomb + r⁻⁶ LJ when enabled
`periodic_external`	CHARMM IMAGE VDW	jax-pme, nvalchemiops PME, native ewald, or ScaFaCoS full-box Coulomb	Large boxes where JAX MM is off; requires `pbc_`* setup

In jax_mic + jax_pme mode: r⁻¹² repulsion stays on the switched pair list (exact Lorentz–Berthelot σ_ij, ε_ij, hybrid λ); Coulomb and the r⁻⁶ LJ tail use jax-pme (Ewald/PME/P3M) with per-atom √C6 and geometric k-space combining (GROMACS-style LJ-PME reciprocal rule). Each jax-pme MM term is scale × (E_pme_full − E_intra) so intra-monomer electrostatics and dispersion remain in the ML region (same COM switching as the pair loop).

nvalchemiops_pme is currently wired as a full-box Coulomb solver for periodic_external and standalone backend comparisons. It does not replace the jax_mic Coulomb+r⁻⁶ handoff yet because MMML's existing switched-MM path also relies on jax-pme's r⁻⁶ dispersion support.

ewald (mmml.interfaces.pycharmmInterface.ewald_native) is a jit-native, fully differentiable Ewald summation implemented directly in JAX — no external PME library, no CUDA requirement. It's the same operator at both training time (lr_solver: ewald in physnet-train) and MD time (--mm-nonbond-mode periodic_external --lr-solver ewald), so a checkpoint trained against it deploys with an exactly consistent MM electrostatics term. Unlike jax_pme/nvalchemiops_pme (both host-orchestrated via ase.Atoms / jax.pure_callback, which have no gradient rule), ewald's energy is plain JAX all the way through, so jax.grad works on it directly — this is also what makes it usable inside the jit-compiled mmml/md/ JaxmdDriver loop (lr_solver="ewald" on MMNonbondedTerm), where jax_pme/nvalchemiops_pme cannot go. Trade-off: it's a true Ewald sum (O(N·K) reciprocal-space cost), not a mesh-based PME (O(N log N)) — fine for training-batch-sized structures and moderate MD boxes, but not yet the right choice for very large liquid boxes where PME's asymptotic scaling matters.

2. CLI flags (`md-system`, `mmml md-system`)¶

Flag	Values	Default	Meaning
`--mm-nonbond-mode`	`jax_mic`, `periodic_external`	`jax_mic`	MM stack selection
`--lr-solver`	`auto`, `mic`, `jax_pme`, `nvalchemiops_pme`, `ewald`, `scafacos`	`mic`	Default: truncated MIC; opt in jax_pme / ScaFaCoS / nvalchemiops / ewald
`--jax-pme-method`	`ewald`, `pme`, `p3m`	`ewald`	jax-pme variant
`--jax-pme-sr-cutoff`	float (Å)	`6.0`	jax-pme real-space cutoff
`--jax-pme-dispersion` / `--no-jax-pme-dispersion`	bool	env / on	Include r⁻⁶ LJ-PME tail; off = Coulomb-only LR
`--scafacos-method`	`ewald`, `p3m`, …	`ewald`	ScaFaCoS `fcs_init` string
`--include-mm` / `--no-include-mm`	bool	on	JAX MM pair path (LJ ± Coulomb)

Environment mirrors:

export MMML_LR_SOLVER=jax_pme      # default mic; opt in: jax_pme | scafacos | nvalchemiops_pme | ewald
export JAX_PME_METHOD=pme          # ewald | pme | p3m
export JAX_PME_SR_CUTOFF=6.0
export MMML_JAX_PME_DISPERSION=1  # set 0 for Coulomb-only timing/smokes
export MMML_NVALCHEMIOPS_PME_ACCURACY=1e-6
export SCAFACOS_LIB=$HOME/.local/scafacos/lib/libfcs.so
export SCAFACOS_METHOD=ewald

YAML keys use underscores: lr_solver, jax_pme_method, jax_pme_sr_cutoff, mm_nonbond_mode.

Example config: mmml/cli/run/dcm_long_range_solvers.example.yaml.

3. Standalone validation (no PyCHARMM)¶

Quick check that jax-pme and backends are installed:

cd ~/mmml
python tests/functionality/long_range/00_check_lr_env.py
pytest tests/functionality/long_range/test_coulomb_backends.py -v
pytest tests/functionality/long_range/test_hybrid_jax_pme_mm.py -v
bash tests/functionality/long_range/run_all.sh

ScaFaCoS (optional):

export SCAFACOS_LIB=$HOME/.local/scafacos/lib/libfcs.so
export LD_LIBRARY_PATH=$HOME/.local/scafacos/lib:$LD_LIBRARY_PATH
python tests/functionality/long_range/04_scafacos_methods.py

4. Example: jax-pme Ewald on a certified DCM box¶

After scripts/run_dcm_liquid_workflow.sh produces ~/tests/boxes/dcm60_l32/:

export MMML_CKPT=~/mmml/mmml/models/physnetjax/defaults/hf_json/<checkpoint>_portable.json

MMML_MPI_NP=1 ~/mmml/scripts/mmml-charmm-mpirun.sh md-system \
  --config ~/mmml/mmml/cli/run/dcm_long_range_solvers.example.yaml \
  --from-psf ~/tests/boxes/dcm60_l32/model.psf \
  --from-crd ~/tests/boxes/dcm60_l32/model.crd \
  --lr-solver jax_pme \
  --jax-pme-method ewald \
  --output-dir ~/tests/runs/dcm60_jax_pme_ewald \
  --checkpoint "$MMML_CKPT"

Compare with truncated MIC (default):

  --lr-solver mic \
  --output-dir ~/tests/runs/dcm60_mic

Swap --jax-pme-method to pme or p3m to test mesh methods. For Coulomb-only timing or smoke tests, add --no-jax-pme-dispersion; this keeps full switched LJ pairs and skips the r⁻⁶ PME full/intra calls.

5. Example: periodic_external full-box Coulomb¶

Turns off JAX real-space MM; Coulomb from jax-pme, nvalchemiops PME, or ScaFaCoS, LJ from CHARMM IMAGE:

MMML_MPI_NP=1 ~/mmml/scripts/mmml-charmm-mpirun.sh md-system \
  --setup pbc_npt \
  --composition DCM:60 \
  --from-psf ~/tests/boxes/dcm60_l32/model.psf \
  --from-crd ~/tests/boxes/dcm60_l32/model.crd \
  --mm-nonbond-mode periodic_external \
  --lr-solver jax_pme \
  --jax-pme-method pme \
  --box-size 32 \
  --checkpoint "$MMML_CKPT" \
  -o ~/tests/runs/dcm60_periodic_jax_pme

ScaFaCoS variant (requires libfcs):

  --lr-solver scafacos \
  --scafacos-method ewald

nvalchemiops PME variant (requires mmml[nvalchemiops-pme] and a suitable JAX runtime):

  --lr-solver nvalchemiops_pme

Native ewald variant (pure JAX — no external package, no CUDA requirement; same operator physnet-train --lr-solver ewald trains against, so a checkpoint trained with it deploys consistently here):

  --lr-solver ewald

For a small-system check of Monomer ML + MM with native Ewald under both mm_charge_mode: fixed and latent (no checkpoint required for the analytic smoke; optional DCM:2 PyCHARMM YAMLs keep CHARMM bonded on), see calculator-capabilities.md and hybrid-mm-charges.md:

python examples/hybrid_mm_charges/monomer_ml_mm_ewald_example.py

6. Automated solver sweep¶

scripts/run_dcm_long_range_workflow.sh runs validation, optional liquid-box certification, then one short md-system mini per solver configuration.

# Default: MIC + jax-pme (ewald, pme, p3m) in jax_mic mode
export MMML_CKPT=~/mmml/.../<ckpt>_portable.json
~/mmml/scripts/run_dcm_long_range_workflow.sh

# Custom sweep
LR_SOLVERS=mic,jax_pme \
JAX_PME_METHODS=ewald,p3m \
N_DCM=60 BOX_SIZE=32 \
~/mmml/scripts/run_dcm_long_range_workflow.sh

# Coulomb-only jax-pme sweep (skips r^-6 LJ-PME full/intra calls)
LR_SOLVERS=jax_pme \
JAX_PME_METHODS=ewald,pme,p3m \
JAX_PME_DISPERSION=0 \
~/mmml/scripts/run_dcm_long_range_workflow.sh

# Validation only (no MD)
SKIP_MD=1 ~/mmml/scripts/run_dcm_long_range_workflow.sh

# Include nvalchemiops PME / native ewald / ScaFaCoS when installed
LR_SOLVERS=mic,jax_pme,nvalchemiops_pme,ewald,scafacos \
SCAFACOS_METHODS=ewald,p3m \
~/mmml/scripts/run_dcm_long_range_workflow.sh

Results land in ~/tests/runs/dcm<N>_l<L>_lr_solvers/solver_comparison.tsv (includes hybrid_grms_kcalmol_A per solver).

For a fast force-eval microbenchmark without MD:

uv run python tests/functionality/long_range/08_benchmark_jax_pme_hybrid.py \
  --methods ewald,pme,p3m --repeat 10

uv run python tests/functionality/long_range/08_benchmark_jax_pme_hybrid.py \
  --methods ewald,pme,p3m --coulomb-only --profile

Force validation (same certified box)¶

After the sweep, compare hybrid GRMS across solvers on the same certified PSF/CRD:

# Post-run: validate TSV from the workflow
python tests/functionality/long_range/07_hybrid_grms_lr_solver_compare.py \
  --summary-tsv ~/tests/runs/dcm60_l32_lr_solvers/solver_comparison.tsv

# Live probe at fixed coordinates (PyCHARMM + checkpoint required)
MMML_MPI_NP=1 ~/mmml/scripts/mmml-charmm-mpirun.sh \
  python tests/functionality/long_range/07_hybrid_grms_lr_solver_compare.py \
  --psf ~/tests/boxes/dcm60_l32/model.psf \
  --crd ~/tests/boxes/dcm60_l32/model.crd \
  --checkpoint "$MMML_CKPT" \
  --box-size 32

Expectations:

All solvers return finite hybrid GRMS (no JAX tracer errors under jax_pme).
jax-pme methods (ewald, pme, p3m) agree within ~10% rtol on the same geometry.
MIC vs jax-pme may differ (truncated vs full Coulomb); both should be finite.

7. Expected behaviour¶

Comparison	Expectation
MIC vs jax-pme on large periodic box
ewald vs pme vs p3m (jax-pme)	Energies agree to ~0.1–1% on neutral crystals; P3M may need tuning
LJ r^-12 (pair loop)	Identical LB mixing with/without jax_pme; total vdw differs (r^-6 via k-space)
nvalchemiops PME / native ewald / ScaFaCoS vs jax-pme	Similar full-box Coulomb totals on neutral periodic systems after unit conversion
native ewald vs nvalchemiops PME	Agree to ~1e-4 kcal/mol on the same geometry (verify with `scripts/check_ewald_train_md_pme_parity.py`)
Hybrid GRMS (same certified box)	jax-pme methods within ~10% rtol; MIC may differ (see §6 force validation)

Log line at MLpot startup (verbose):

Decomposed MLpot: lr_solver=jax_pme, scafacos=no, jax_pme=yes (jax-pme method=ewald, sr_cutoff=6.0 Å)

The Hybrid ML/MM setup dashboard (always printed at calculator init) includes a Long-range Coulomb section with mm_nonbond_mode, resolved lr_solver, lr_solver_active (what actually runs), and method-specific settings. Default jax_mic uses truncated MIC in the switched-MM pair loop. Opt in with lr_solver: jax_pme for jax-pme Ewald/PME/P3M, or periodic_external for full-box jax-pme/ScaFaCoS without the JAX pair loop.

8. Troubleshooting¶

Issue	Fix
`jax_pme` falls back to `mic`	Install jax-pme: `uv sync` (pinned in pyproject.toml)
`nvalchemiops_pme` falls back	Install `mmml[nvalchemiops-pme]` and a compatible JAX runtime
`scafacos` unavailable	Build to `~/.local/scafacos`, set `SCAFACOS_LIB` and `LD_LIBRARY_PATH`
MIC box too small	Use L ≥ 28–32 Å for DCM; see `run_dcm_liquid_workflow.sh` header
`periodic_external` fails	Need `--setup pbc_*`, positive `--box-size`, and an installed external Coulomb backend
Segfault under MPI + ScaFaCoS	Ensure mpi4py uses `COMM_WORLD.handle` (fixed in recent MMML)
`TracerArrayConversionError` under `jax_pme`	Upgrade MMML (hybrid jax-pme uses `jax.pure_callback` inside JIT)
`No FFI handler … _compute_naive_num_shifts_* on … Host` under `nvalchemiops_pme` train	Warp NL is CUDA-only; train on a GPU node with CUDA jaxlib. Do not set `MMML_NVALCHEMIOPS_PME_DEVICE=cpu`.
`time+` frozen / first `jit_train_step` never returns with `nvalchemiops_pme`	Nested CUDA JAX inside `pure_callback` deadlocks the parent GPU XLA executor. Default isolate mode is `cpu_train`: jit train/eval on CPU, PME callback on GPU. Look for `jit train/eval on CPU; PME callback on GPU`. Or use `--lr-solver ewald` (same full-box contract, fully jit-native).
`CUDA_ERROR_DEVICE_UNAVAILABLE` in nvalchemiops PME spawn worker	Spawn after the parent has initialized CUDA often fails on Exclusive_Process / multi-GPU nodes. Leave `MMML_NVALCHEMIOPS_PME_ISOLATE` unset (default `cpu_train`). Do not set `=spawn` unless you start the worker before any JAX CUDA init.

9. Next steps¶

Production NPT equilibration: extend MD_STAGES=mini,equi in the workflow script
Campaign YAML: lr_solver / jax_pme_method under defaults — see [docs/md-system-configs.md](md-system-configs.md)
Force validation: 07_hybrid_grms_lr_solver_compare.py (also run automatically at end of run_dcm_long_range_workflow.sh)
